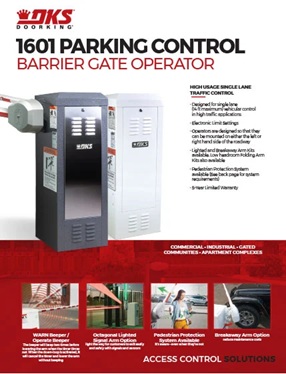

Doorking 1601 Barrier Gate Opener
A quick 2.5 second rotation opening time along with rugged construction and multiple optional features make this 1601 a versatile answer to many parking control problems. The 1601 is available in white or gun metal gray finish. These Operators are designed so that they can be mounted on either the left or right-hand side of the roadway. An optional battery-powered Convenience Open option is available, which provides a method to open the gate if AC power is lost. The 1601 Operator is designed for single-lane (14 ft. max) vehicular traffic control in high-traffic commercial and industrial applications.
Key Features:
- 1/2 HP continuous-duty motor for reliable high-cycle operation
- Opens 90° in approximately 1.5–2.5 seconds
- Supports up to 14 ft arms (wood, aluminum round, or octagonal)
- Left or right-hand mount
- Battery-powered Convenience Open option (raises arm on power failure)
- Magnetic limit control and plug-in loop detector ports
- Class II, III & IV rated for commercial and industrial use
WARN Beeper / Operate Beeper
Beeper will beep 2 times before lowering arm ONLY when the TIMER times out. If using a down loop, when it gets activated, it will cancel the timer and lower arm WITHOUT beeping.
Beeper will beep 2 times before lowering arm EVERYTIME.
Specifications
- 1/2 HP continuous-duty motor.
- 115, 230*, 460* VAC. (*230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)
- 40:1 gear-box running in a continuous oil bath.
- Arm rotates 90° in approximately 2.5 seconds.
- Class II, III and IV applications.
- Compliant with UL 325 and 991. ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, entrapment protection devices need to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
- Dimensions (operator only): 15.25″W x 39.5″H x 14.75″D.
MISCELLANEOUS
- Environmental: 10°F to 140°F (-12°C to 62°C)
- Thermostatically Controlled Heater Kit recommended for colder environments.
- 1601 shipping weight approximately 140-160 lb (63-72 kg)
- Arm Kit: 15 lb (7 kg)
Mechanical
- Two convenience outlets.
- Primary Reduction is provided by a 60:1 Worm Gear Reduction System running in a continuous oil bath
- Arm rotates 90° in approximately 2.5 seconds
- G90 Galvanized Steel Housing
- Fail-Secure Mechanical Release Method
- Left- or Right-Hand Mount
- 360° gear box rotation before the motor changes direction. This provides for smooth operation, evens wear across the entire gear-box, and increases the life span of the operator
ELECTRICAL
- Magnetic Electronic Limit Controls
- Auto-Close timer 3.5 to 59 seconds
- P.A.M.S. (Perimeter Access Management System) sequence with a Slide or Swing Gate Operator
- Up Input Memory Buffer
- Down Memory Option
- Multiple Up Commands
- Port for plug-in Open (Up) Detector
- Port for plug-in Reverse (Down) Detector
- Programming Switches
- Built-in Power On/Off Switch
- DKS Pedestrian Protection System: The system reverses
- Barrier Arm if person is detected, and lowers
- Barrier Arm if unauthorized vehicle enters. Requires DKS
- 9411 Loop Detector and a photo-beam.
