FAAC B680H Automatic Barrier Gate – High Performance for Heavy Traffic
Introduction
Looking for a true heavy-duty automatic barrier gate that can handle continuous daily use? The FAAC B680H is one of the most reliable high-cycle boom gates on the market.
As an authorized distributor, we offer the FAAC B680H — a 24V hybrid barrier that combines hydraulic power with a brushless motor. It’s specifically engineered for demanding commercial, industrial, and government applications where reliability and speed matter.
Key Features:

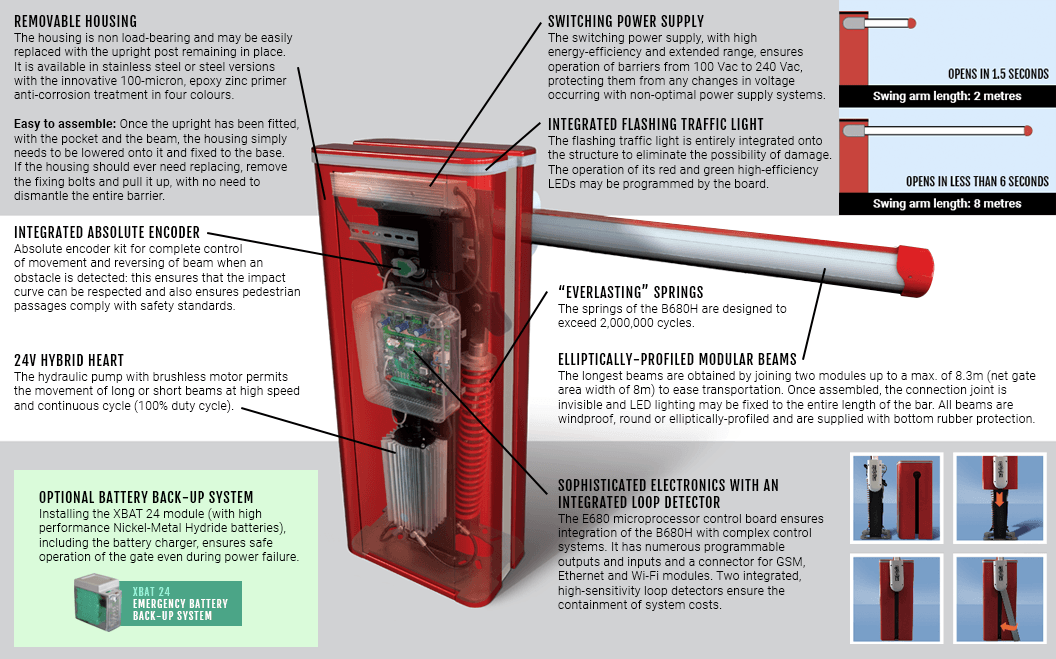

Hybrid Technology Built to Last The B680H uses FAAC’s advanced hybrid system — a brushless motor paired with hydraulic operation. This delivers smooth, powerful performance with very low maintenance.
Extreme Durability
- Rated for over 2,000,000 cycles
- “Everlasting” balancing springs
- True 100% duty cycle — perfect for high-traffic locations
Fast Operation Opens in as little as 1.5 seconds (for shorter arms) up to 6 seconds for longer beams. Speed and soft start/stop are fully adjustable.
Advanced Safety Built-in absolute encoder constantly monitors the arm position and instantly reverses if it detects an obstacle — protecting vehicles and people.
Smart & Service-Friendly Design
- Removable housing with internal load-bearing structure
- Compatible with existing FAAC 620 and 640 foundation plates
- Easy access for maintenance and upgrades
Removable housing:

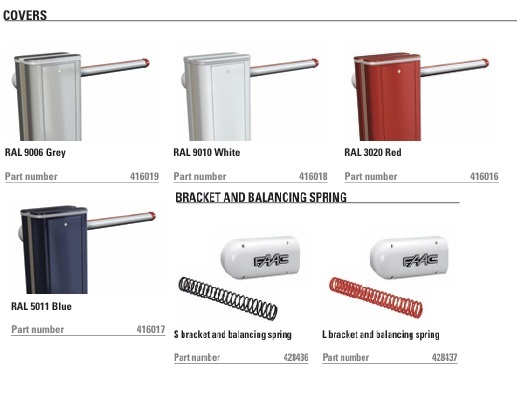

The housing is non load-bearing and may be easily replaced, with the upright post remaining in place. It is available in stainless-steel or steel versions, with the innovative, 100-micron, epoxy zinc primer anti-corrosion treatment, with four colors available.
Easy to assemble:
Aluminum beam arm fits into the receiving pocket and the housing simply needs to be lowered onto it and fixed to the base. If the housing should ever need replacing, simply remove the fixing bolts and pull it up, with no need to dismantle the entire barrier.
Backup batteries:
Installing the XBAT 24 module (high-performance Nickel-Metal Hydride batteries), including battery charger, ensures the operation of the B680H even during a black out.
Intelligent Solutions
- Designed so that accessories can be fixed to the housing
- Simple, guided mechanical setup
- Automatic control board setup with just 2 steps
- Control board with transparent box fixed to the upper part of the barrier
- DIN bar already fitted and space for further accessories
- Few part numbers
- Modular beams
compatible with foundation plates of FAAC 620 and 640 barriers
Cutsheets, Installation Manuals and Accessory Manuals
