Upswung Parking Systems Corp.
Industrial Quality Manual and Automatic Barrier Arm Gates
Contractors License NV. #57900  CA #363787 since 1978
7:30AM  to 4:00 PM PST Monday- Friday.
visa   mastercard   amex       Main Store

"Expert help from licensed professionals from purchase to completion of your access control project."
 Quotes & Information   775-588-1475 X112   Fax Line:   775-588-1473
We custom manufacture a complete line of manually operated products for commercial and governmental applications to residential applications. These barrier gates come in sizes up to and over 32 foot arm lengths.
Check out the MB832 series of lockable manual & semi-automatic barrier gates and the light duty BTSW  gates below.

Hand-Operated - Our Manual & Semi-automatic Arms to 32 feet.
btsw612 btsw818 mb832 mb832sa mb832ss manual barrier tip supportarm cradle
BTSW 612
6 to12 feet
BTSW818
8 to 18 feet

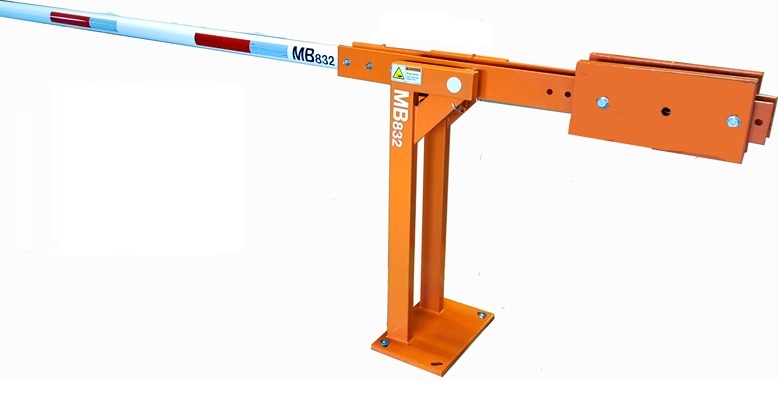

MB832 Manual
Barrier 10 to 32 fee
t
MB832SA
Semi-Automatic
10
to 32 feet

MB832-SS Manual
Barrier Stainless Steel
 MB1625 Heavy Duty Cabinet Manual Barrier MB832 Barrier Arm
Tip Supports
Solar Barrier Gates - True Solar Powered Gate Operators
linear osco manual barrier gate apollo gates barriers
UPS-BGU 10 to 12 ft UPS-BGUS
14 to18 feet
UPS-SG 16 to 25 ft Solar Powered
Barrier Gate
Warning Signs for
Manual Barriers
Big & Fenced Panel Electric Barrier Gates
Liftmaster Doorking FAAC Automatic control systems hysecurity gate arm
gates and barriers

arm gate
Liftmaster to 24 ft arm Length Doorking to 20 ft arm length FAAC to 23ft arm length Automatic Systems
Industrial / Commercial Gate Operators Linear Osco to 25 ft lengths Barrier Operator with Fence Panels
Bollards & Wedges- Top Quality Polished Stainless Steel Bollards
steel bollard pipe bollard renovable bollard fixed bollards stainless steel bollard manual bollards Movable plastic bollard
Automatic Bollards Semi-Automatic Bollards Removable Bollards Fixed Bollards Fixed Bollard
Bolt-down
Manual Bollards Plastic Vehicle Bollards

Foundations for Mounting Gate Openers and Arm Gates
Most installations for all types of gate operators are mounted on a concrete pad. The concrete pad should be made of 3000psi or 6-sack concrete which has cured for two weeks. The concrete pad should be 6 inches thick and have at least 4 inches of cover for the rebar and anchor bolts on all four sides. It is convenient to pour the concrete pad ahead of time and add the anchor bolts after the pad has cured. Once the operator bolt pattern is laid out use a electric hammer drill and drill 3/8" to 1/2" holes that do not completely go through the pad. Then install any of the commonly available wedge anchors into the holes and bolt the unit down.
One last consideration are soil conditions and how deep to make the pad. The pad thickness should extend below the frost line. so that in the Winter water that will get under the pad will not freeze and cause freeze lifting of the pad. This lifting action will eventually make the pad uneven year round.


Moveable Foundations
Barrier gates have the ability to be moved if placed on a Moveable Foundation. Since the arm has no attachment points and swings freely in the air the unit can be moved as long as the base that holds it is heavy enough to keep it stable. The base can be made to be moved with a forklift or a tractor loading bucket. Once placed the unit can be connected with a simple tool power cord plugged into a GFI distribution box. This is required to prevent the possible electrocution.

Gate Background

 Barrier gates are an easy way to ensure the security of private premises and can be used for all sized properties. They are very commonplace have found their niche in the market today. For those who find the security of their premises (be it residential or commercial) important, it is the best way to go. Doorking
There is a decrease in the cost and their installation. Aside from the basic kits, there are now many features that can be added to ensure s
ecurity  as well as make them more convenient

The Gate Motor

Linear BGU & BGU-D
The backbone of any operator, whether automatic or not, is the electric gate motor, the electric device which actually enables the gate arm to open and close without having to manually push the gate. All types of electric gates and barriers make use of a motor of some kind. There are many different kinds of electric gate motors. They differ in design, power and use. Depending on the type of gate you have, the suitable electric gate motor will also differ. Some manufacturers allow for increasing the arm length by using a splice assembly to add two tube arms together to make a longer arm.


Gates and Security

Barrier gates alone, however solid and imposing they may be, cannot guarantee a totally secure environment. They are recommended to be used in combination with other security features to install a full security system. A few of these features are closed circuits with security cameras, additional gates in conjunction with the main gate, electronic keycards and keypads, security guards.
Aside from the additional security features that should go with this class of gates they often offer safety features like sensors that determine when there is an obstruction to prevent the electronic gate from swinging into a vehicle or closing on somebody's hands. to prevent the electronic gates from being damaged by irresponsible drivers driving fast speed bumps are also commonly placed before gate entrances to slow down vehiclesfaac
